Industrial Routers
A 5G router built for the cabinet, not the desk: four gigabit ports and serial on a pluggable terminal, and dual-band Wi-Fi for the local link. The wide-range DC input covers the supply the site already has.
Supply under your own brand, from 1 unit. Printed label samples the same day. See OEM & private label options →
Overview

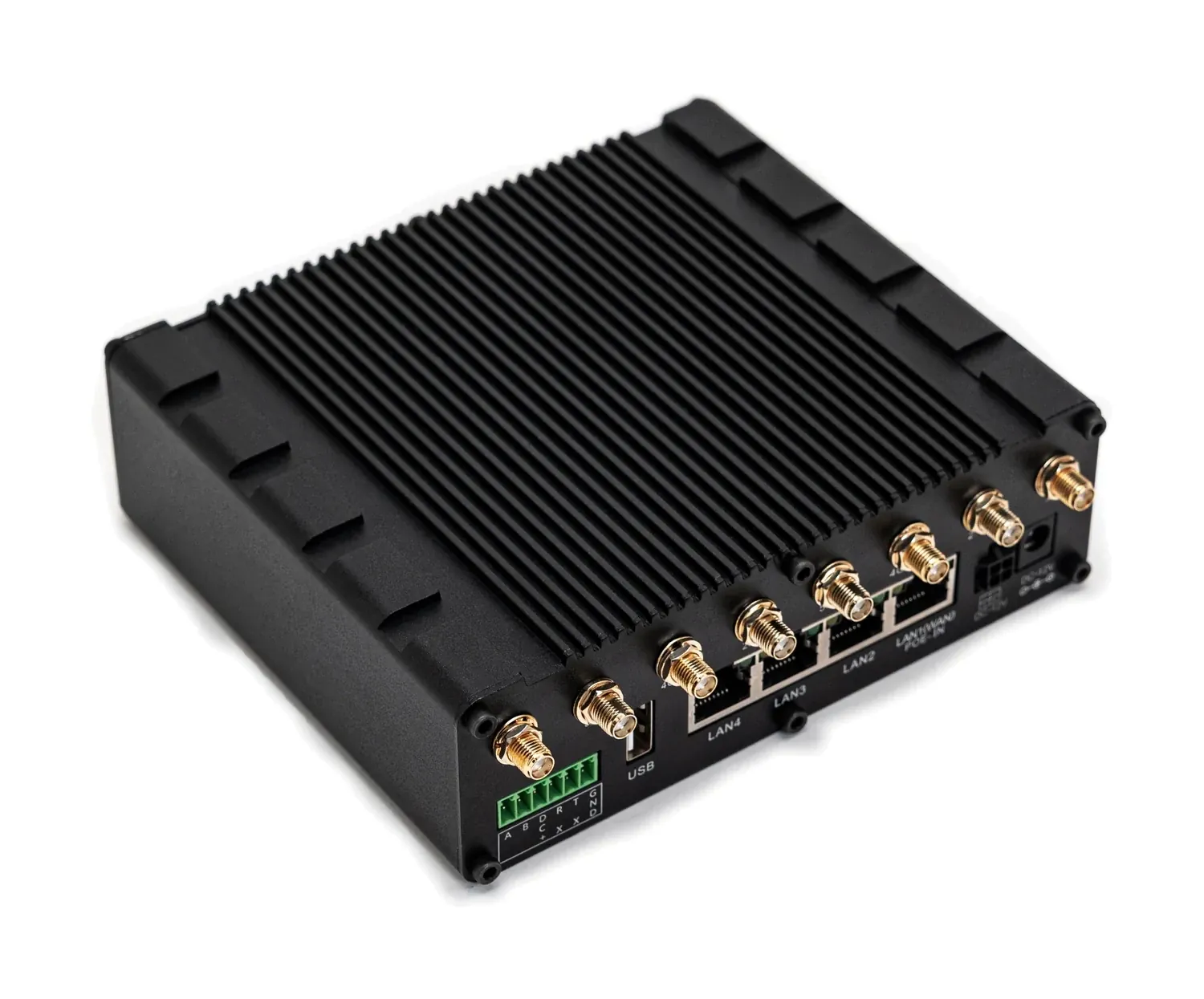

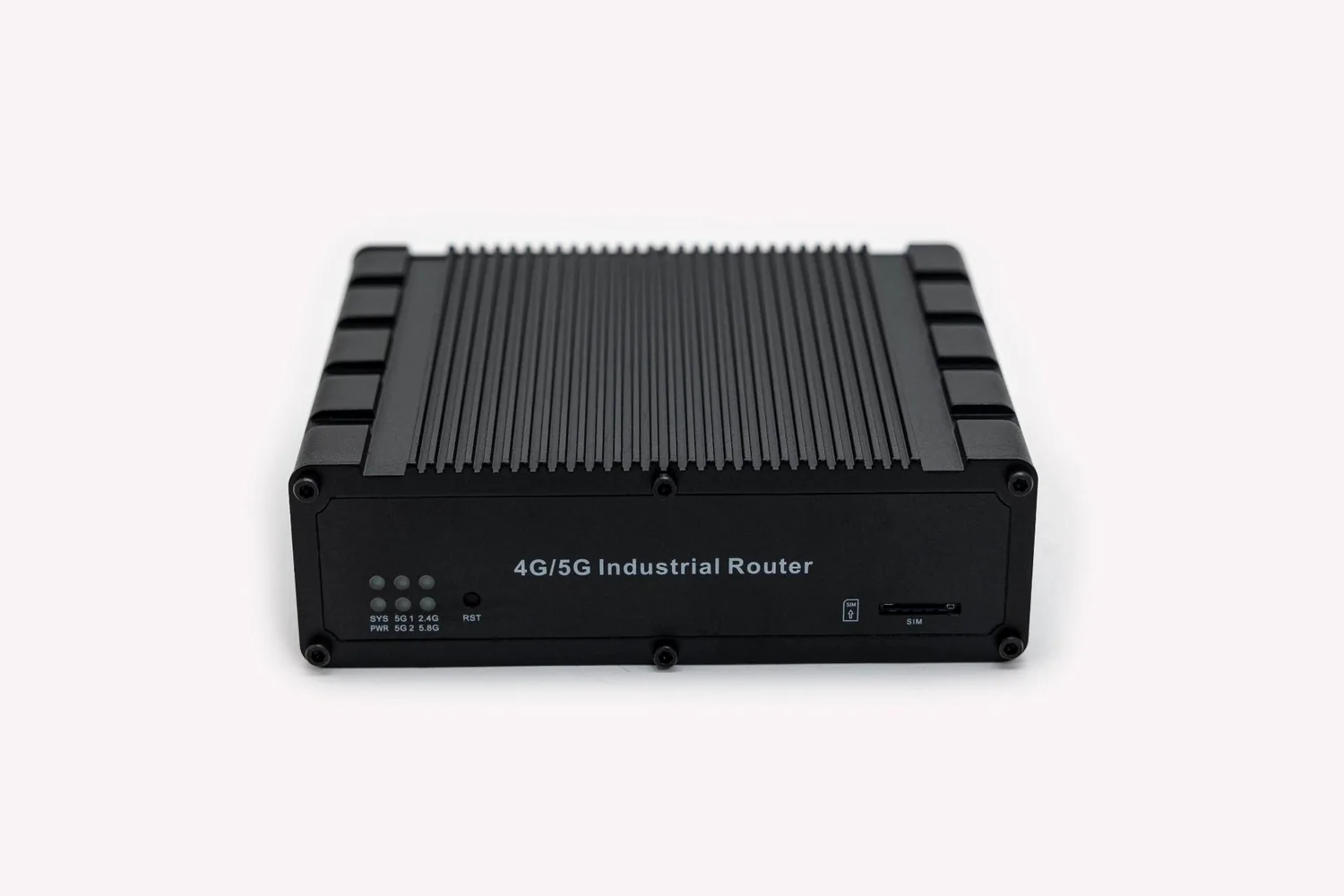

The T300-PRO1 is the 5G member of the T300 router family: the same DIN-rail metal housing and the same wiring practice, with a 5G Sub-6 cellular engine and dual-band Wi-Fi on board. It gives a cabinet one uplink path, one local network and one place to hang the meters, PLCs and sensors that sit next to it.

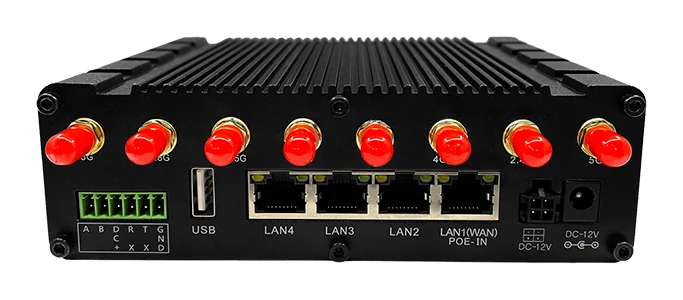

Four gigabit ports cover the wired side — one WAN/LAN plus three LAN. The RS-485 / RS-232 serial lines come out on a pluggable terminal block, so commissioning a Modbus meter or a legacy controller does not need an add-on converter.
The power stage accepts DC 7–35 V, which means the same router runs from a 12 V or a 24 V cabinet rail without a separate converter, and the −30 °C to +70 °C envelope covers an unheated roadside cabinet as well as a closed panel in summer. Firmware configuration, branding and final inspection stay with our own team on every order.
5G SA / NSA where the network is ready, with LTE fallback so the link does not go dark outside coverage.
Four gigabit ports and RS-485 / RS-232 serial on one device — one box to specify, one box to certify and stock.
Separate ports for 4 × cellular and 2 + 2 Wi-Fi, so the installer is not splitting a signal to fit.
Printed label samples the same day, from one unit. Enclosure silk printing and retail packaging at volume.
Specifications
Three groups, same order on every router page: cellular and wireless first, interfaces and power second, mechanical and environmental third.
How many antennas ship is fixed by the radio configuration — see the count table. Other antenna formats — rubber stick, panel-mount, vehicle and fibreglass — can be substituted at order. The adapter plug is set by the regional version, so there is nothing to choose.
Need a parameter that is not listed here? The full band table per regional version, EMC data and the packaging list are in the detailed specifications below. You can also download the full datasheet (PDF) or request a quote.
Detailed specifications
The long-tail data — network functions, physical details and reliability figures. Filled in by our technical team on the product record, so it can be completed without touching the sections above.
Family & ordering
The model name is the order code — there is nothing to assemble. Read the segments below to decode any model in the family, and pick the one that matches your network and your interfaces.
PRO1 5G310 4G390 5GCN / EA / AUNA / SA / JP / GL| Model | Network | Wi-Fi | In this family |
|---|---|---|---|
T300-PRO1This page · 5G | 4 × gigabit + serial | Dual band 2.4 / 5.8 GHz | Top tier5G with four gigabit ports and dual-band Wi-Fi — the highest-spec model in the family. |
T300-3104G volume model | 2 × 100 Mbps + serial | 2.4 GHz | Cheaper tier4G instead of 5G, 2 × 100 Mbps instead of 4 × gigabit, single-band Wi-Fi. GNSS-RTK positioning option. |
T300-18004G, higher port count | Multiple 100 Mbps ports | 2.4 GHz | More portsSame 4G engine with a higher port count for cabinets with several devices. GNSS-RTK positioning option. |
T300Base model | Entry configuration | Options on request | EntryEntry configuration — tell us the interfaces you need and we match the closest build. |
Positioning — GPS / BeiDou / GNSS with RTK — is offered on the T300-310, 390, 280 and 1800, and is not available on the PRO1. Tell us the site and we confirm the closest build →
Quote the full model name — for example T300-PRO1 — and we will come back with availability, lead time and pricing. See all 182 orderable router models →
Regional versions
4G and 5G band plans differ by market. Send the destination country and we will quote the matching regional version — this is the first question most distributors ask.
Band plans for Europe, Asia, Africa and Australia — the mainstream 4G and 5G networks.
North and South American band plans, including the 600 MHz and AWS combinations.
Japan- and global-version band plans for networks outside the mainstream groups.
Options & accessories
Antennas and the adapter are standard on every unit. The count follows the radios you order, the plug follows the regional version, and the only open choice is the antenna format — which is carried into the quote request below.
The plug standard follows the regional version — the country code in the ordering model — so it is not a separate line item and not a separate decision. Working on a project that needs a different or a spare adapter? Ask our team.

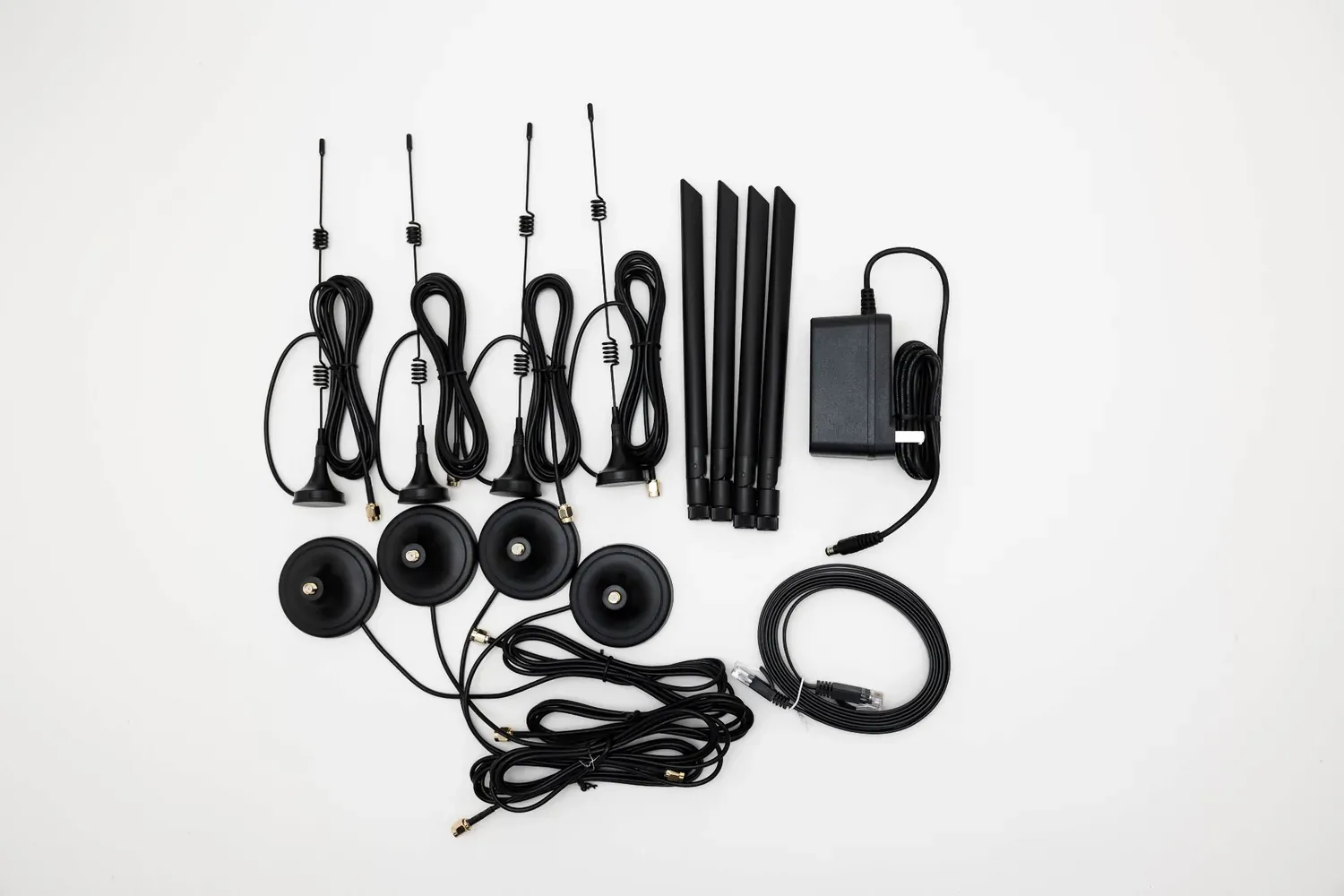

Every unit ships with a full set of 2 m suction cup antennas, sized by the radios inside rather than chosen at checkout. Where the installation cannot use a suction cup — a sheet-metal cabinet, a vehicle, an outdoor pole — the format can be swapped at order.
| Radio | Antennas as standard | Note |
|---|---|---|
| 4G LTE | 1 | 2 on request |
| 5G Sub-6 | 4 | — |
| Wi-Fi 4 | 2 | — |
| Wi-Fi 5 / Wi-Fi 6 | 4 | — |

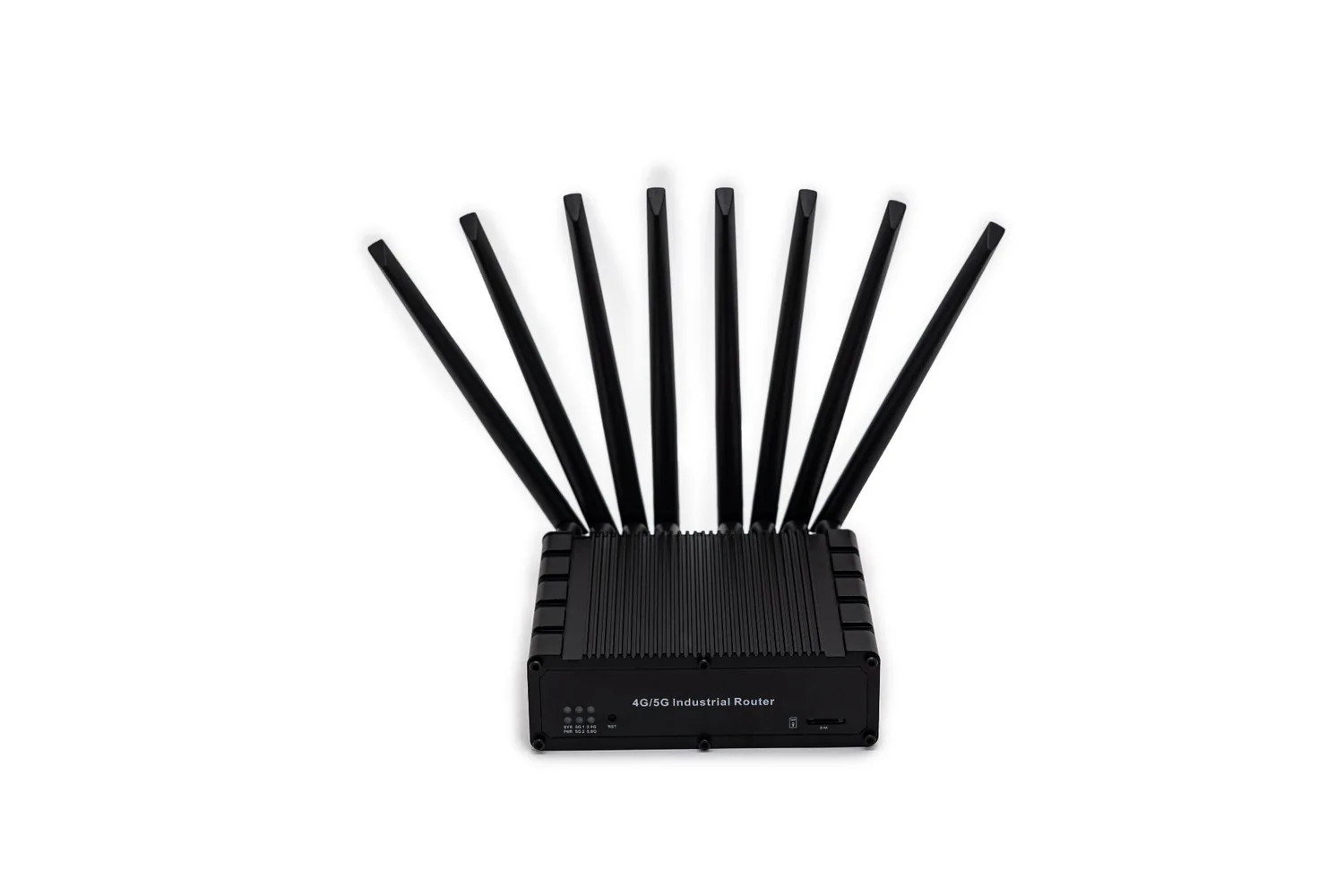

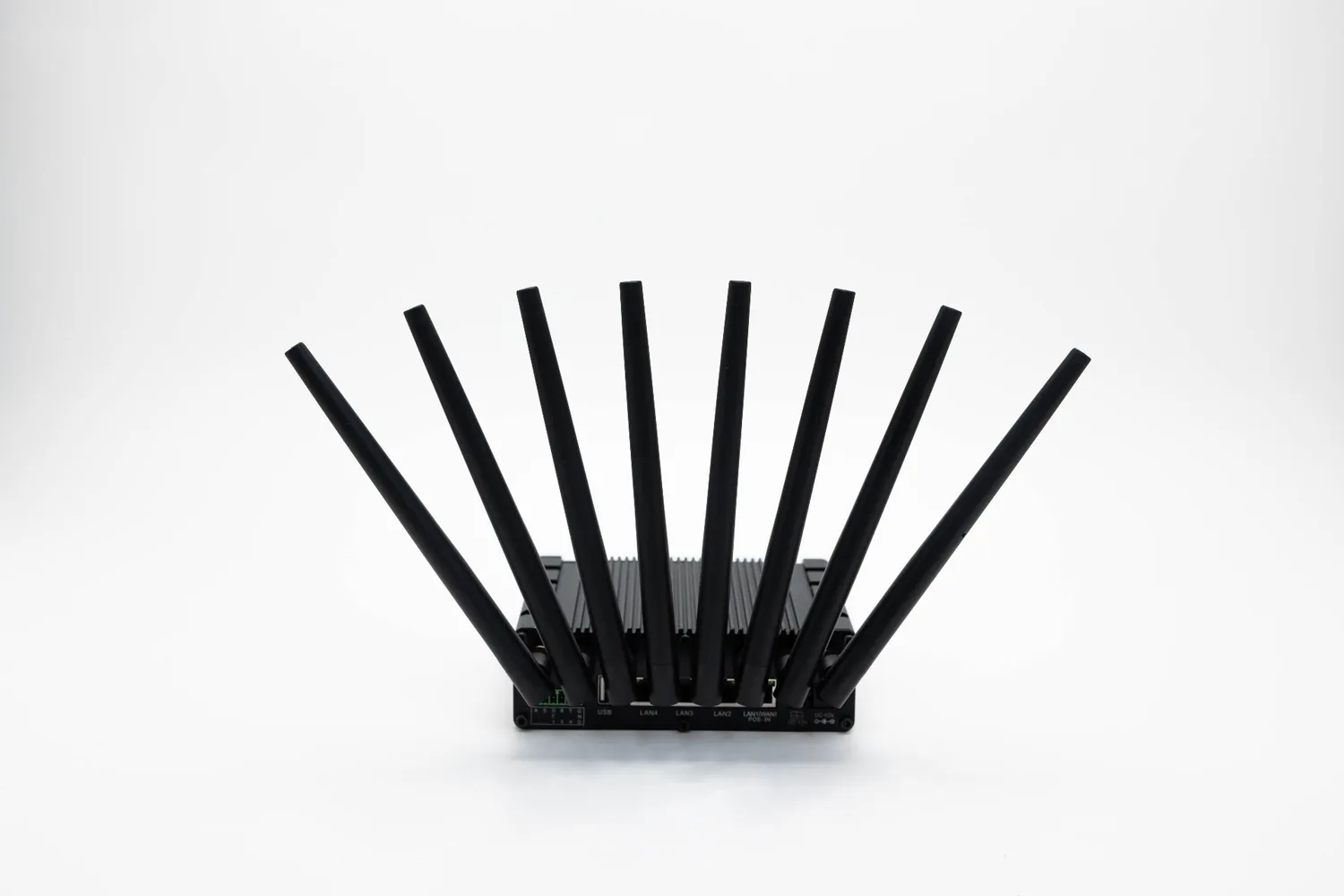

Counts add up by configuration. This model is 5G with dual-band Wi-Fi, so it ships 8 antennas — 4 for 5G and 4 for Wi-Fi. A 4G model without Wi-Fi (4GA-W0) ships a single 4G antenna.
Screws straight onto the port, no cable run. The usual choice indoors and inside large panels, where the antenna does not have to leave the enclosure.
Bulkhead fitting through the enclosure wall: antenna outside a metal cabinet, pigtail inside. Use it where a sealed cabinet shields the signal.
Roof or body mounting for mobile installs — buses, trucks, rolling stock. Vibration-tolerant mount with a run long enough to reach the cabin.
Pole-mounted outdoor omni for permanent sites, lifting the antenna clear of the cabinet. UV- and weather-resistant radome.
Your configuration: T300-PRO1 · 5G + dual-band Wi-Fi · 8 × suction cup antennas (2 m)
Swapping the format does not change the count — 8 antennas either way on this model. Tell us the format you need and we confirm the connector types and cable lengths with the quote.
Applications
Typical uses reported by distributors and system integrators working with this model.
5G uplink for camera and signage cabinets, with the wide DC range matching whatever the cabinet already supplies.
RS-485 on the terminal block reads the meter directly, and the router forwards it over 5G without a separate gateway.
Wired PLC traffic on the gigabit ports, serial devices on RS-232, one 5G path out of the plant floor.
−30 °C start-up, fanless housing and a wide DC range that matches whatever the remote site already supplies.
Dual-band Wi-Fi for local commissioning, 5G for the backhaul to the operator platform.
Firmware defaults, enclosure branding and label printing configured for your product line.
Downloads
The datasheet and the compliance documents for this model open straight away — no form, no account. User manuals and firmware are released after a short form, so we can keep track of which hardware revision you are running.
Full parameter table, band sets per regional version, EMC data and ordering information.
The certificate and declaration set that applies to this model — for your own certification file.
Installation, configuration and firmware for this hardware revision, released after a short form.
Stuck on configuration, or planning the installation? Setup & troubleshooting FAQ → · Warranty and RMA terms → · All downloads and manuals →
Looking for something else for this model? All documents for the T300-PRO1 →
Type approval is the responsibility of the brand owner. Certification cost is not included in the quoted price. We supply the test reports and engineering support you need — talk to us before you start the process.
Works with this router
The parts that turn one router into a working cabinet — from one supplier, on one order, against one lead time.
The access layer this router uplinks from — 133 models from 5 to 48 ports, unmanaged to Layer 3, with PoE+ variants.
Pairs withExtend coverage past the router's own radios — outdoor units for yard and pole mounts, private label available.
Add onFive antenna formats (2 m suction cup as standard, plus rubber stick, panel-mount, vehicle and fibreglass) — chosen above and carried into your quote.
Looking for the range instead of a pair? All 182 orderable router models → · All industrial switches → · Private label from one unit →
Get in touch
Tell us the destination market and the interfaces you need, and we will come back with the matching regional version, availability, lead time and pricing. Datasheet included with every quote.
Your selected configuration: T300-PRO1 · 5G + dual-band Wi-Fi · 8 × suction cup antennas (2 m) change
Your enquiry goes to the technical team, not a call centre. Expect a parameter-level answer.
Pricing, lead time, MOQ and the current document set come back in one message.
